TP-LINK 10-port Gigabit 10/100/1000 switch TL-SG1210MP 8-Port PoE+

9X Gigabit RJ45 ports and 1× Gigabit SFP/RJ45 combo port
8X PoE+ ports transmit data and power over a single cable with a total power consumption of 123 W
Compliant with IEEE 802.3af/at PoE+ switch supports PoE power up to 30 W for each PoE port
Data and power transmission range up to 250 m in extended mode
Priority mode gives high priority to ports 1–2 to ensure the quality of sensitive applications
Isolation mode allows one-click separation of client traffic for increased security and performance

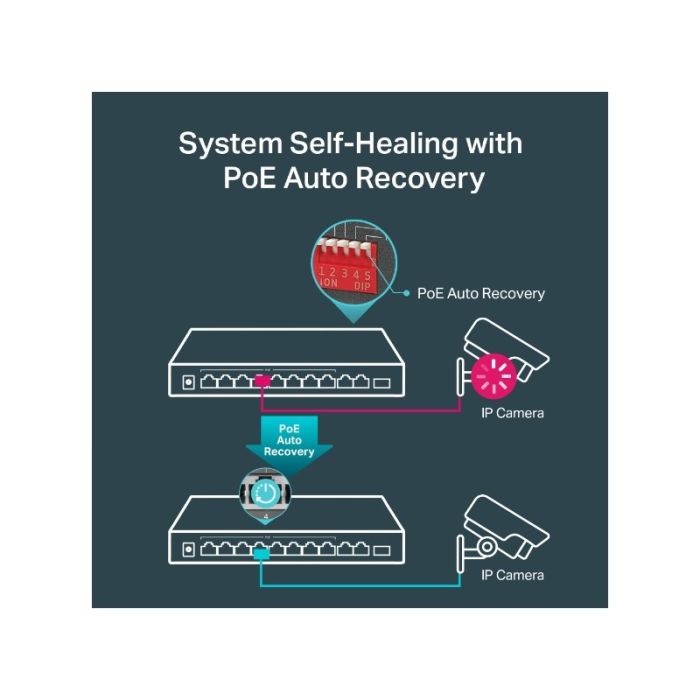

Automatically reboots your failed or unresponsive PoE-powered devices with PoE Auto Recovery
Plug and play with no configuration required
Fanless design reduces power consumption and operates quietly in your space

HARDWARE FEATURES
Interface • 9× 10/100/1000 Mbps RJ45 ports
• 1× 1000 Mbps combined SFP/RJ45 port
• AUTONEGOTIATION
• AUTO MDI/MDIX
Network media • 10BASE-T: Category 3, 4, 5 UTP cable (max. 100 m)
• EIA/TIA-568 100Ω STP (max. 100 m)
• 100BASE-TX: Category 5, 5e UTP cable (max. 100 m)
• EIA/TIA-568 100Ω STP (max. 100 m)
Fan quantity No fan
Physical security lock Yes
External power supply External power supply (output: 53.5 VDC / 2.43 A)
Packet forwarding rate 14.88 Mpps
PoE ports (RJ45) • Standard: compliant with 802.3 af/at
• PoE ports: Ports 1–8
• Power supply: 123 W
4K MAC address table
Jumbo frame 16 KB
Switching capacity 20 Gbps
Dimensions (W x D x H) 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
Maximum power consumption • 7.93 W (220 V / 50 Hz with PD not connected)
• 141.40 W (220 V / 50 Hz with 123 W PD connected)
Maximum heat dissipation • 27.04 BTU/h (220 V / 50 Hz without PD connected)
• 482.17 BTU/h (220 V / 50 Hz with 123 W PD connected)
SOFTWARE FEATURES
Store-and-Forward transmission method
Advanced features • Compatible with PDs compliant with IEEE 802.3af/at
• Extension mode button (ports 1–4, up to 250 m PoE power and data transmission)
• Priority mode button (ports 1–2)
• Isolation mode button (ports 1–4 / 5–8)
• Auto PoE recovery (ports 1-8)
• Auto-learning and auto-aging of Mac addresses
• IEEE802.3x flow control for Full-Duplex mode and backpressure for Half-Duplex mode
OTHER
FCC, CE, RoHS certification
Package contents • TL-SG1210MP
• Power adapter
• Installation guide
Environment • Operating temperature: 0–40 ℃ (32–104 ℉)
• Storage temperature: -40–70 ℃ (-40–158 ℉)
• Operating humidity: 10–90% RH, non-condensing
• Storage humidity: 5–90% RH without condensation
