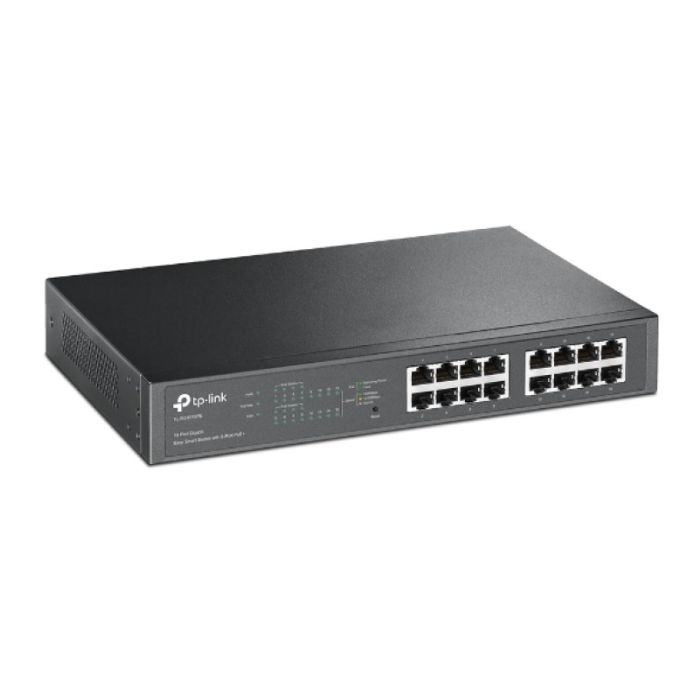

TP-Link 16-Port Gigabit Network Switch TL-SG1016PE with 8-Port PoE+ Port

16 × 10/100/1000 Mbps RJ45 ports
Equipped with 8× supported PoE+ ports for data transfer and power supply via a single cable
With a total PoE power budget of 150 W,* up to 30 W per port
Works with IEEE 802.3af/at compliant devices
Automatically reboots your failed or unresponsive PoE-powered devices with Auto PoE Reboot
Simple network setup with plug-and-play connectivity
Web-based user interface and management utility simplify configuration

HARDWARE FEATURES
Standards and protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface 16× 10/100/1000 Mbps RJ45 Ports
AUTO-NEGOTIATION/AUTO MDI/MDIX
Network media 10BASE-T: Category 3, 4, 5 UTP cable (max. 100 m)
EIA/TIA-568 100Ω STP (max. 100 m)
100BASE-TX: Category 5, 5e UTP cable (max. 100 m)
EIA/TIA-568 100Ω STP (max. 100 m)
1000BASE-T: Category 5, 5e, 6 or higher UTP cable (maximum 100 m)
EIA/TIA-568 100Ω STP (max. 100 m)
Number of fans 1
Physical security lock Yes
PoE port (RJ45) Standard: compliant with 802.3 af/at
PoE ports: ports 1 to 8
PoE power budget: 150 W
Dimensions (W x D x H) 11.6×7.1×1.7 in (294×180×44 mm)
Mounting brackets for mounting/desktop
Maximum power consumption 8.8 W (220 V/50 Hz with no PD connected)
172.26 W (220 V/50 Hz with 150 W PD connected)
Maximum heat dissipation 30.01 BTU/h (220 V/50 Hz without PD connected)
587.41 BTU/h (220 V/50 Hz with 150 W PD connected)
DESIGN
Switching capacity 32 Gbps
Packet forwarding rate 23.8 Mbps
MAC address table 8K
Packet buffer 4.1 Mbit
Jumbo frame 10 KB
SOFTWARE FEATURES
Quality of service support Port-based/802.1p/DSCP priority
Supports 4 priority queues
Rate limiting
Storm control
L2 includes IGMP Snooping V1/V2/V3
Static link aggregation
Port mirroring
Cable diagnostics
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (from 4K VLAN IDs)
MTU/Port/Tag VLAN
PoE PoE management
Extended mode
PoE auto recovery
Management Web GUI
Easy Smart Configuration Utility
Store-and-Forward Transfer Method
OTHER
Certification FCC, CE, RoHS
Package Contents TL-SG1016PE
Power cable
Installation Guide
Rack mount kit
Rubber feet
System requirements Microsoft® Windows® for running the utility
Operating ambient temperature: 0–40 ℃ (32–104 ℉)
Storage temperature: -40–70 ℃ (-40–158 ℉)
Operating humidity: 10–90% non-condensing
Storage humidity: 5–90% non-condensing
