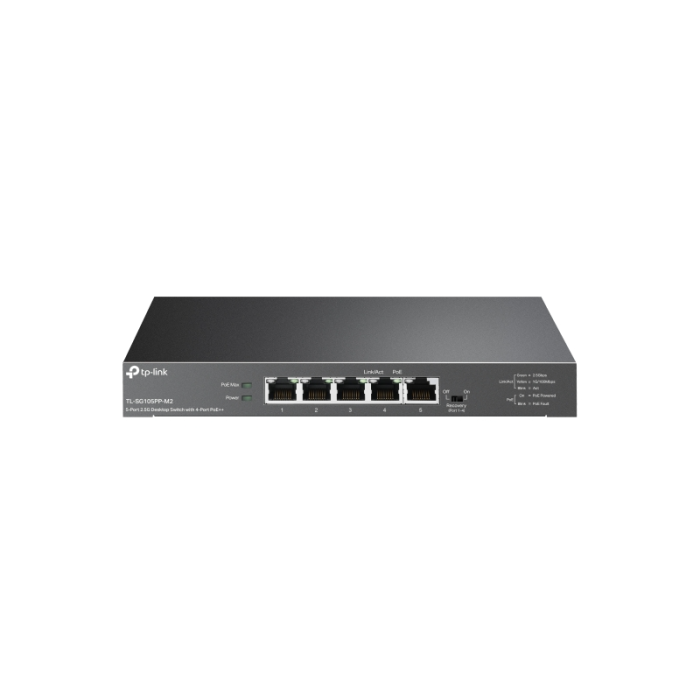

TP-LINK 5-port 2.5G network switch with 4-port PoE++

5× 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
With four PoE++ ports, it transmits data and power over a single cable
Works with PDs that comply with the IEEE 802.3af/at/bt type3 standard
802.1p/DSCP QoS enables smooth, latency-sensitive traffic
Supports PoE power up to 60 W for each PoE++ port
Supports PoE power up to 123 W for all PoE ports*
PoE Auto Recovery ensures stable operation of PoE devices by automatically rebooting failed or unresponsive PDs
Plug and Play, no configuration or installation required

HARDWARE FEATURES
Interface • 5× 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
• AUTO negotiation
• AUTOMATIC MDI/MDIX
Network media • 10BASE-T: Category 3, 4, 5 UTP cable (max. 100 m)
• EIA/TIA-568 100Ω STP (max. 100 m)
• 100BASE-TX: Category 5, 5e UTP cable (max. 100 m)
• EIA/TIA-568 100Ω STP (max. 100 m)
• 1000BASE-T: Category 5, 5e, 6, or higher UTP cable (maximum 100 m)
• EIA/TIA-568 100Ω STP (max. 100 m)
Fan quantity No fan
External power supply External power supply (output: 53.5 VDC / 2.43 A)
Packet forwarding rate 18.6 Mpps
PoE ports (RJ45) • Standard: 802.3 af/at/bt type3 compliant
• PoE++ ports: Ports 1–4
• Power supply: 123 W
4K MAC address table
Switching capacity 25 Gbps
Dimensions (W x D x H) 8.2×4.9×1.0 in (209×126×26 mm)
Maximum power consumption • 7.57 W (220/50 Hz. with PD connected)
• 143.37 W (220/50 Hz with 123 W PD connected)
Maximum heat dissipation • 25.81 BTU/h (220 V/50 Hz without PD connected)
• 488.89 BTU/h (220 V/50 Hz with 123 W PD connected)
SOFTWARE FEATURES
Advanced features • Compatible with PDs compliant with IEEE 802.3af/at/bt type3
• Automatic learning and automatic aging of Mac addresses
• IEEE 802.3x flow control
• 802.1p/DSCP QoS
• IGMP snooping
• Auto PoE recovery (ports 1-4)
Store-And-Forward transmission mode
OTHER
Certification FCC, CE, RoHS
Package contents • TL-SG105PP-M2
• Power adapter
• Installation instructions
• Rubber feet
Environment • Operating temperature: 0–40 ℃ (32–104 ℉);
• Storage temperature: -40–70 ℃ (-40–158 ℉)
• Operating humidity: 10–90% RH without condensation
• Storage humidity: 5–90% RH without condensation
