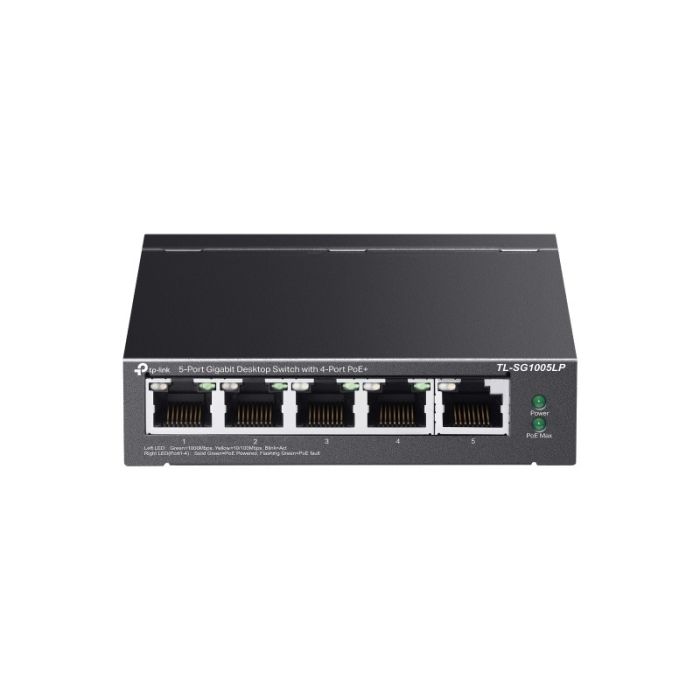

TP-LINK 5-Port Gigabit desktop switch with 4-Port PoE+

4× Gigabit PoE+ ports with up to 30 W PoE output per port
40 W total PoE budget
Up to 250 m data and power transmission distance in extended mode
Automatically reboots your failed or unresponsive PoE-powered devices
Simply plug and play for instant connectivity without configuration
Fanless design reduces power consumption and ensures quiet operation, ideal for noise-sensitive homes or businesses
Desktop/wall mountable

HARDWARE FEATURES
Interface
• 5× 10/100/1000Mbps RJ45 ports
• AUTO-NEGOTIATION
• AUTO MDI/MDIX
Network media • 10BASE-T: Category 3, 4, 5 UTP cable (max. 100 m)
• EIA/TIA-568 100Ω STP (max. 100 m)
• 100BASE-TX: Category 5, 5e UTP cable (max. 100 m)
• EIA/TIA-568 100Ω STP (max. 100 m)
• 1000BASE-T: Category 5, 5e, 6, or higher UTP cable (maximum 100 m)
• EIA/TIA-568 100Ω STP (max. 100 m)
Fan quantity No fan
External power supply External power supply (output: 53.5 VDC / 0.81 A)
Packet forwarding rate 7.44 Mpps
PoE ports (RJ45) • Standard: compliant with 802.3 af/at
• PoE ports: Ports 1–4
• Power supply: 40 W
2K MAC address table
Jumbo frame 16 KB
Switching capacity 10 Gbps
Dimensions (W x D x H) 3.9×3.9×1.0 in (99.8×98×25 mm)
Maximum power consumption • 4.12 W (220/50 Hz. without PD connected)
• 47.5 W (220/50 Hz with 40 W PD connected)
Maximum heat dissipation • 14.05 BTU/h (without PD connected)
• 161.98 BTU/h (with 40 W PD connected)
SOFTWARE FEATURES
Advanced features
• Extended mode: ports 1–4
• Automatic PoE recovery: ports 1-4
• Compatible with IEEE 802.3af/at compliant PDs
• Auto-learning and auto-aging of Mac addresses
• IEEE 802.3x flow control
• 802.1p/DSCP QoS
• IGMP snooping
Store-And-Forward transmission mode
OTHER
Certification FCC, CE, RoHS
Package Contents • TL-SG1005LP
• Power adapter
• Installation Guide
Environment • Operating temperature: 0–40°C (32–104°F);
• Storage temperature: -40–70 ℃ (-40–158 ℉)
• Operating humidity: 10–90% RH non-condensing
• Storage humidity: 5–90% RH without condensation
