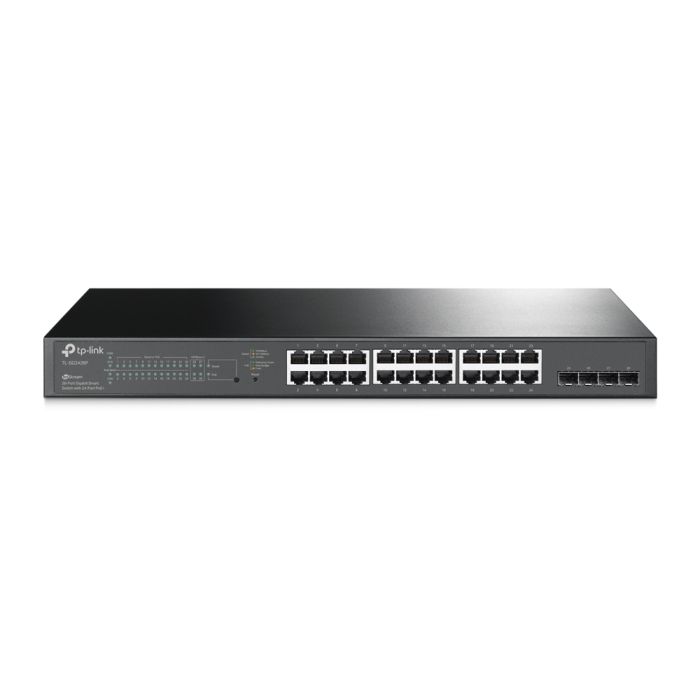

TP-LINK JetStream TL-SG2428P 26-Port Gigabit PoE+ Smart Switch × 4 SFP slots

250 W PoE: 24 × 802.3at/af-compliant PoE+ ports with a total power of 250 W.
Full Gigabit Ports: 24× Gigabit PoE+ ports and 4× Gigabit SFP slots provide fast connections.
Integrated with Omada SDN: Zero-Touch Provisioning (ZTP), centralized cloud management, and intelligent monitoring.
Centralized management: cloud access and Omada app for ultimate convenience and easy management.
Static routing: Helps route internal traffic for more efficient use of network resources.
Robust security strategies: IP-MAC-port binding, ACL, port security, DoS protection, storm control, DHCP snooping, 802.1X, radio authentication, and more.
Optimize voice and video applications: L2/L3/L4 QoS and IGMP snooping.
IPv6: IPv6 support with IPv4/IPv6 dual stack, MLD snooping, IPv6 neighbor discovery.

HARDWARE FEATURES
Standards and protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x
Interface • 24 × 10/100/1000 Mbps RJ45 ports (auto-negotiation/auto MDI/MDIX)
• 4× Gigabit SFP slots
Network media • 10BASE-T: Category 3, 4, 5 UTP cable (maximum 100 m)
• 100BASE-TX/1000Base-T: Category 5, 5e, or higher UTP cable (max. 100 m)
• 1000BASE-X: MMF, SMF
Number of fans 2
Power supply 100-240V AC, 50/60Hz
PoE+ ports (RJ45) • Standard: compliant with 802.3at/af
• PoE+ ports: 24 ports
• Power supply: 250 W
PoE ports (RJ45) • Standard: compliant with 802.3at/af
• PoE+ ports: 24 ports
• PoE power budget: 250 W*
Dimensions (W x D x H) 17.3 × 8.7 × 1.73 in
(440 × 220 × 44 mm)
Mounting 19" 1U rack mountable
Maximum power consumption • 32.1 W (without connected power supply)
• 308.6 W (with 250 W device connected)
Maximum heat dissipation • 109.5 BTU/h (without PD connected)
• 1052.9 BTU/h (with 250 W PD connected)

DESIGN
Switching capacity 56 Gbps
Bandwidth/backplane 56 Gbps
Packet forwarding rate 41.7 Mpps
MAC address table 8K
Packet buffer 4.1 Mbit
Jumbo frame 9 KB
SOFTWARE FEATURES
Quality of service • 802.1p CoS/DSCP priority
• 8 priority queues
• Priority scheduling mode
- SP (strict priority)
- WRR (weighted round robin)
• Queue Weight Config
• Bandwidth control
- Rating limit based on port/throughput
• Smoother operation
• Storm control
- Multiple control modes (kbps/ratio)
- Broadcast/Multicast/Unknown-Unicast Control
L2 and L2+ features • 16 IP interfaces
- Supports IPv4/IPv6 interface
• Static routing
- 32 static IPv4/IPv6 routes
• DHCP server
• DHCP Relay
- DHCP interface relay
- DHCP VLAN Relay
• DHCP L2 relay
• Static ARP
• Proxy ARP
• Free ARP
• Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports
per group
• Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
- STP security: TC Protect, BPDU Filter/Protect,
Root Protect
• Loop detection
• Flow control
- 802.3x Flow Control
• Mirroring
- Port mirroring
- Processor mirroring
- One-to-one
- Many-to-one
- Based on flow
- Input/Output/Both
• Device Link Detection Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED
VLAN • VLAN group
- Max. 4K VLAN groups
• 802.1Q VLAN tag
• MAC VLAN
• VLAN Protocol
• GVRP
• Voice VLAN
Access control list • Supports up to 230 entries
• Time scope
- Time slice
- Weekly time span
- Absolute time range
- Holidays
• Time-based ACL
• MAC ACL
- MAC source
- Destination MAC
- VLAN ID
- User priority
- Ether Type
• IP ACL
- Source IP
- Destination IP
- IP protocol
- TCP flag
- Source TCP/UDP port
- Destination TCP/UDP port
- TOS DSCP/IP
• IPv6 ACL
• Combined ACL
• Rule behavior
- Allow/Deny
• Policy Action
- Mirror
- Rate limit
- Redirect
- QoS note
• Binding ACL rules
- Port binding
- VLAN binding
• Actions for flows
- Mirror (on supported interface)
- Redirect (on supported interface)
- Rate limiting
- QoS note
Security • AAA
• 802.1X
- Port-based authentication
- MAC (Host)-based authentication.
- Authentication method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Supports Radius authentication and
accountability
• IP/IPv6-MAC binding
- 512 binding entries
- DHCP snooping
- DHCPv6 snooping
- ARP inspection
- ND detection
• IP Source Guard
- 253 entries
- IP Source + MAC Source
• IPv6 Source Guard
- 183 entries
- IPv6 source address + MAC source
• DoS protection
• Static/dynamic/permanent port security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
- kbps/ratio control mode
• Port isolation
• Secure web management via HTTPS with
SSLv3/TLS 1.2
• Secure command line interface (CLI)
management with SSHv1/SSHv2
• IP/port/MAC-based access control
IPv6 • Static IPv6 routing and ACL
• IPv6 Dual IPv4/IPv6
• IPv6 interface
• Snooping for multicast listener discovery (MLD).
• IPv6 Neighbor Discovery (ND)
• Maximum Transmission Unit (MTU) discovery.
• Internet Control Message Protocol (ICMP)
version 6
• TCPv6/UDPv6
• IPv6 applications
- DHCPv6 client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP
Advanced features • Automatic device discovery
• Batch configuration
• Batch firmware upgrade
• Intelligent network monitoring
• Abnormal event alerts
• Unified configuration
• Reboot schedule
MIBs • MIB II (RFC1213)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Supports TP-Link private MIBs
• RMON MIB (RFC1757, rmon 1,2,3,9)

MANAGEMENT
Omada App Yes, via
• Omada Cloud Controller (does not support TL-SG2210P v4)
• OC300
• OC200
• Omada Software Controller
Centralized Management • Omada Cloud Controller (does not support TL-SG2210P v4)
• Omada Hardware Controller OC300
• Omada Hardware Controller OC200
• Omada Software Controller
Cloud access Yes, through
• Omada Cloud Controller (does not support TL-SG2210P v4)
• OC300
• OC200
• Omada Software Controller
Touchless enable Yes. Requires the use of Omada Cloud Controller (supported by TL-SG2210P v3.2, v5 and above, while TL-SG2210P v4 does not support it)
Management Features • Web GUI
• Command line interface (CLI) via telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (Groups 1,2,3,9)
• SDM template
• DHCP/BOOTP client
• Dual image, dual configuration
• Processor monitoring
• Cable diagnostics
• EEE
• SNTP
• System log
OTHER
CE, FCC, RoHS certification
Package Contents TL-SG2428P
• Power cable
• Installation guide
• Rack mount kit
• Rubber feet
System requirements Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, Windows 10, MAC® OS, NetWare®, UNIX® or Linux.
Environment • Operating temperature: 0–50 ℃ (32–122 ℉);
• Storage temperature: -40–70 ℃ (-40–158 ℉)
• Operating humidity: 10–90% RH non-condensing
• Storage humidity: 5–90% RH without condensation
