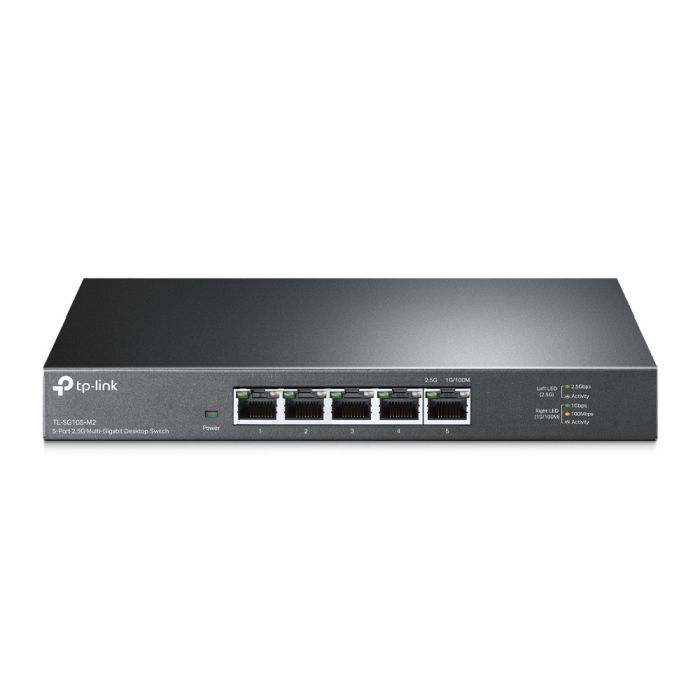

TP-LINK SG105-M2 V1 5-port 2.5G network switch

The TL-SG105-M2 V1 is a compact 5-port desktop switch designed for environments that require higher wired speeds and stable connectivity. Each port supports speeds of up to 2.5 Gbps and automatically adjusts its operating mode with Auto-Negotiation and Auto-MDI/MDIX, allowing for easy integration into existing network infrastructure. The fanless design ensures quiet operation, while the metal housing provides added durability.
Advanced features such as 802.3X Flow Control and QoS (802.1p/DSCP) support improve traffic management and enable more reliable operation under heavy loads. A switching capacity of 25 Gbps, a 16K MAC table, and support for jumbo frames up to 10 KB ensure efficient data packet processing and stable network operation.
The switch is easy to install and use, as it requires no configuration. The included power adapter and rubber feet allow for quick placement on a desk or other flat surface. The TL-SG105-M2 V1 is suitable for home and small business environments where increased bandwidth and upgraded wired performance are required.

HARDWARE FEATURES
Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3bz
Interfaces: 5 × 100 Mbps / 1 Gbps / 2.5 Gbps (Auto-Negotiation, Auto-MDI/MDIX)
Fans: fanless
Power supply: external power supply 12 V DC / 1 A
LED indicators: 1 × power, 5 × Link/Act
Dimensions: 209 × 126 × 26 mm
Maximum power consumption: 12.11 W
Maximum heat dissipation: 41.32 BTU/h

PERFORMANCE
Switching capacity: 25 Gbps
Packet forwarding rate: 18.6 Mpps
MAC table: 16 K
Packet cache: 1.5 Mb
Jumbo frame: 10 KB

SOFTWARE FEATURES
802.3X Flow Control
802.1p/DSCP QoS
Transmission method: Store and Forward

OTHER
Certifications: CE, FCC, RoHS
Package contents: TL-SG105-M2 , power adapter, installation guide, rubber feet
Operating environment:
Operating temperature: 0–40 °C (32–104 °F)
Storage temperature: -40–70 °C (-40–158 °F)
Operating relative humidity: 10–90% RH (non-condensing)
Relative humidity during storage: 5–90% RH (non-condensing)
