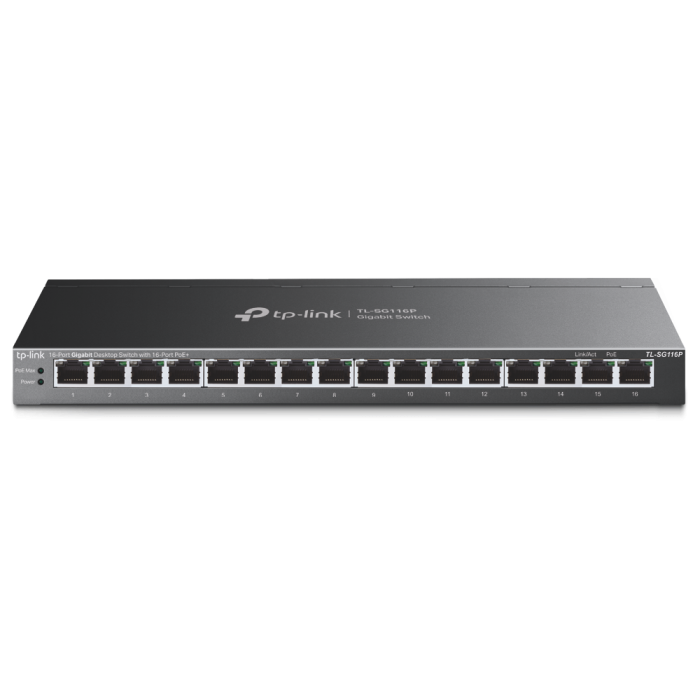

TP-LINK SG116P 16-port Gigabit PoE+ network switch

The TP-LINK TL-SG116P is a reliable and efficient 16-port Gigabit switch designed for home, office, and small business networks. The ports support PoE+ (802.3af/at), allowing direct power supply to IP cameras, access points, VoIP phones, and other PoE devices without the need for additional cables or power supplies. With a total PoE budget of 120 W, the switch provides stable power to multiple devices simultaneously. Energy-efficient technology reduces power consumption based on load, while the metal housing and fanless design ensure quiet operation and long-term reliability.

Interface: 16 × 10/100/1000 Mbps RJ45 (Auto-Negotiation / Auto MDI/MDIX)
PoE ports:
8 × PoE+ ports (ports 1–8)
PoE standard: 802.3af/802.3at
PoE budget: 120 W
Standards and protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
External power supply: External Power Adapter (Output: 53.5 VDC / 2.43 A)
Power consumption:
11.72 W (220 V / 50 Hz without PD device connected) / 11.56 W (110 V / 60 Hz without PD device connected)
142.51 W (220 V / 50 Hz with 120 W* PD device connected) / 144.28 W (110 V / 60 Hz with 120 W* PD device connected)
Features: Compatible with PD devices that comply with the IEEE 802.3af/at standard, Extend mode button (ports 1–4, up to 250 m PoE power and data transmission), Priority mode button (ports 1–4), Isolation mode button (ports 1–7 / 8–14), Auto PoE reset (ports 1–16), Auto MAC address learning and aging, IEEE 802.3x flow control, 802.1p/DSCP QoS, IGMP Snooping
Dimensions: 284 × 179 × 44 mm
Material: Metal housing

*PoE consumption calculations are based on laboratory tests. Actual PoE power budget is not guaranteed and may vary due to client limitations and environmental factors.
