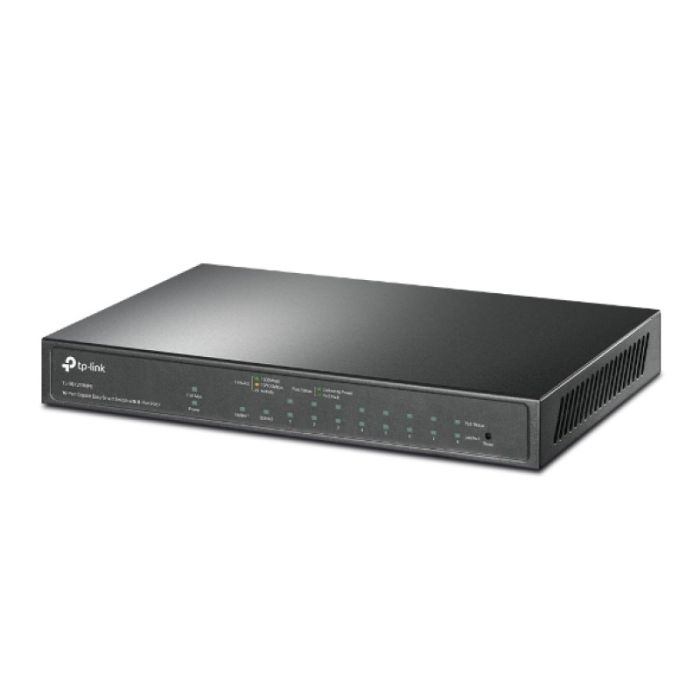

TP-LINK Switch 10-Port Gigabit Switch with 8-Port PoE+ Port

9× Gigabit RJ45 ports and 1× combined Gigabit SFP/RJ45 port
Equipped with eight 802.3af/at PoE+ ports with up to 30 W per port, the switch can transfer data and power over a single cable
Supports PoE power up to 123 W for all PoE ports*
Enables network monitoring, traffic prioritization, VLAN functions, and automatic PoE recovery
Easy network setup with plug-and-play connectivity
Web-based user interface and Easy Smart Configuration Utility simplify configuration
Fanless design reduces power consumption and eliminates operating noise

HARDWARE FEATURES
Standards and protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at, IEEE 802.3z
Interface 9× 10/100/1000 Mbps RJ45 Ports
1× 1000 Mbps combined SFP/RJ45 port
AUTO-negotiation/AUTO MDI/MDIX
Network media 10BASE-T: Category 3, 4, 5 UTP cable (max. 100 m)
EIA/TIA-568 100Ω STP (max. 100 m)
100BASE-TX: Category 5, 5e UTP cable (max. 100 m)
EIA/TIA-568 100Ω STP (max. 100 m)
1000BASE-T: Category 5, 5e, 6 or higher UTP cable (maximum 100 m)
EIA/TIA-568 100Ω STP (max. 100 m)
Fan quantity No fan
Power supply External power supply (output: 53.5 VDC/2.43 A)
PoE port (RJ45) Standard: compliant with 802.3 af/at
PoE ports: ports 1 - ports 8
PoE power budget: 123 W
Dimensions (W x D x H) 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
Maximum power consumption 7.66 W (220 V / 50 Hz with no PD connected)
141.54 W (220 V / 50 Hz with 123 W PD connected)
Maximum heat dissipation 26.12 BTU/h (220 V / 50 Hz without PD connected)
482.65 BTU/h (220 V / 50 Hz with 123 W PD connected)
DESIGN
Switching capacity 20 Gbps
Packet forwarding rate 14.88 Mpps
MAC address table 4 K
Jumbo frame 16 KB
SOFTWARE FEATURES
Quality of service support Port-based/802.1p/DSCP priority
Supports 4 priority queues
Rate limiting
Storm control
L2 includes IGMP Snooping V1/V2/V3
Static link aggregation
Port mirroring
Cable diagnostics
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (from 4K VLAN IDs)
MTU/Port/Tag VLAN
PoE Extend Mode**
Automatic PoE recovery
Management Web GUI
Easy Smart Configuration Utility
Store-and-Forward Transfer Method
OTHER
Certification FCC, CE, RoHS
Package Contents TL-SG1210MPE
Charger
Installation Guide
Rubber feet
System Requirements Microsoft® Windows® to run the utility
Operating temperature: 0℃~40℃ (32℉~104℉)
Storage temperature: -40℃~70℃ (-40℉~158℉)
Operating humidity: 10%~90%RH non-condensing
Storage humidity: 5%~95%RH without condensation
