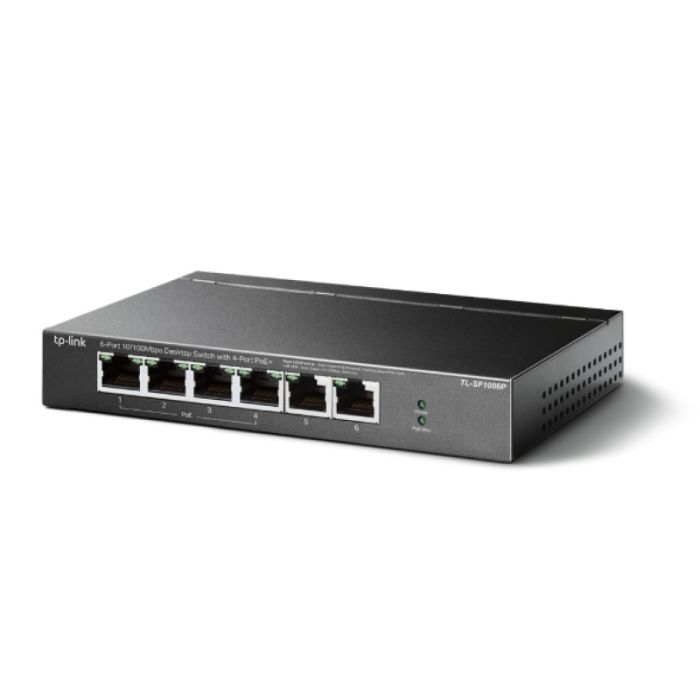

TP-LINK TL-SF1006P 6-Port 10/100Mbps Switch with 4-Port PoE+

6 × 10/100 Mbps RJ45 ports
4× PoE+ ports transmit data and power over individual cables
Works with PDs that comply with the IEEE 802.3af/at standard
Up to 250 m data and power transmission distance in extended mode**
Priority mode gives high priority to ports 1–2 to ensure the quality of sensitive applications
Supports PoE power up to 30 W for each PoE port
Supports PoE power up to 67 W for all PoE ports
Plug and play with no configuration required

HARDWARE FEATURES
Interface • 6× 10/100 Mbps RJ45 ports (ports 1–4 support 802.3af/at PoE+)
• AUTOMATIC negotiation
• AUTO MDI/MDIX
Network media • 10BASE-T: Category 3, 4, 5 UTP cable (max. 100 m)
• EIA/TIA-568 100Ω STP (max. 100 m)
• 100BASE-TX: Category 5, 5e UTP cable (max. 100 m)
• EIA/TIA-568 100Ω STP (max. 100 m)
Fan quantity No fan
Physical security lock Yes
External power supply External power supply (output: 53.5 V DC / 1.31 A)
Packet forwarding rate 0.8928 Mpps
PoE ports (RJ45) • Standard: compliant with 802.3 af/at
• PoE ports: Ports 1–4
• Power supply: 67 W
2K MAC address table
Jumbo frame 2 KB
Switching capacity 1.2 Gbps
Dimensions (W x D x H) 158 x 101 x 25 mm (6.2 x 4.0 x 1.0 in)
Maximum power consumption • 2.57 W (220 V / 50 Hz, with no PD connected)
• 77.8 W (220 V / 50 Hz, with 67 W PD connected)
Maximum heat dissipation • 8.76 BTU/h (without PD connected)
• 265.29 BTU/h (with 67 W PD connected)
SOFTWARE FEATURES
Store-and-Forward transmission method
Advanced features • Compatible with PDs compliant with IEEE 802.3af/at
• Expansion mode button (ports 1–4)
• Priority mode button (ports 1–2)
• Auto-learning and auto-aging of Mac addresses
• IEEE802.3x flow control for full duplex mode and backpressure for half duplex mode
OTHER
Certification FCC, CE, RoHS
Package contents • TL-SF1006P
• Power adapter
• Installation instructions
Environment • Operating temperature: 0–40 ℃ (32–104 ℉)
• Storage temperature: -40–70 ℃ (-40–158 ℉)
• Operating humidity: 10–90% RH non-condensing
• Storage humidity: 5–90% RH without condensation
