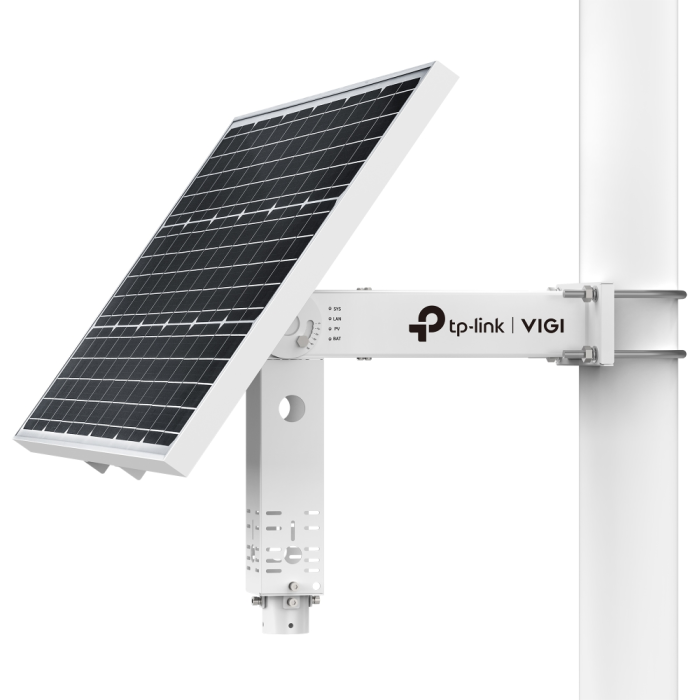

TP-LINK VIGI SP9030 VIGI Intelligent Solar Power Supply System 90W Panel 31.2Ah/10.8V Battery

90 W photovoltaic panel and 31.2 Ah/10.8 V lithium battery
3 × DC output ports
Modular design
5°/15°/25°/35°/45°/55° adjustable angles
Intelligent auxiliary heating technology
Maximum power point tracking (MPPT) charge controller
IP66 Weatherproof
Remote control and easy installation

Solar panel (photovoltaic panel)
Power 90 W
Voltage 18 V
Dimensions (L x W x H) 998×516×30 mm (39.3×20.3×1.2 in)
Battery
Type Lithium
Intelligent auxiliary heating Yes
Battery capacity 31.2 Ah
Voltage 10.8 V
Max. Output voltage 12.6 V
Service life More than 500 cycles*
Dimensions 242×70×65 mm (9.5×2.8×2.6 in)
Charging conditions • 0°C~45°C
• -30°C~45°C (with intelligent auxiliary heating)
Discharging conditions • -20°C~60°C
• -30°C~60°C (with intelligent auxiliary heating)
Angle adjustment (manual)
Range 5°/15°/25°/35°/45°/55
HARDWARE
Interface • 1× 10/100 Mbps RJ45
• 1× photovoltaic panel connector
• 3× 5.5 mm DC power connectors (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A)
LED indicator • Quantity: 4 (1× SYS indicator, 1× LAN indicator, 1× PV indicator, 1× BAT indicator)
• Color: blue
SOFTWARE FEATURES
Load monitoring Yes
High and low temperature protection Yes
Protection against excessive discharge Yes
Energy consumption statistics Yes
Real-time charging status display Yes
Battery level display Yes
Time zone selection Yes
Region selection Yes
Schedule storage Yes
Remote firmware update Yes
Remote reboot Yes
Local LAN management Yes
Smart charging control -30°C~5°C
Account management Yes
Remote reset Yes
Remote Message Push Yes
OTHER
Certification • CB, PSE (battery)
• CE, FCC, VCCI, IC, IP66
Package contents • VIGI SP9030
• Quick Start Guide
• Waterproof cable connectors
• Mounting accessories
Box dimensions (W x D x H) 1110×615×225 mm (43.7×24.2×8.9 in)
Weight • Product weight: 15 kg
• Package weight: 17.5 kg
Environment • Operating temperature: -30°C-60°C (with intelligent auxiliary heating)
• Operating humidity: 10%~90%RH, non-condensing
